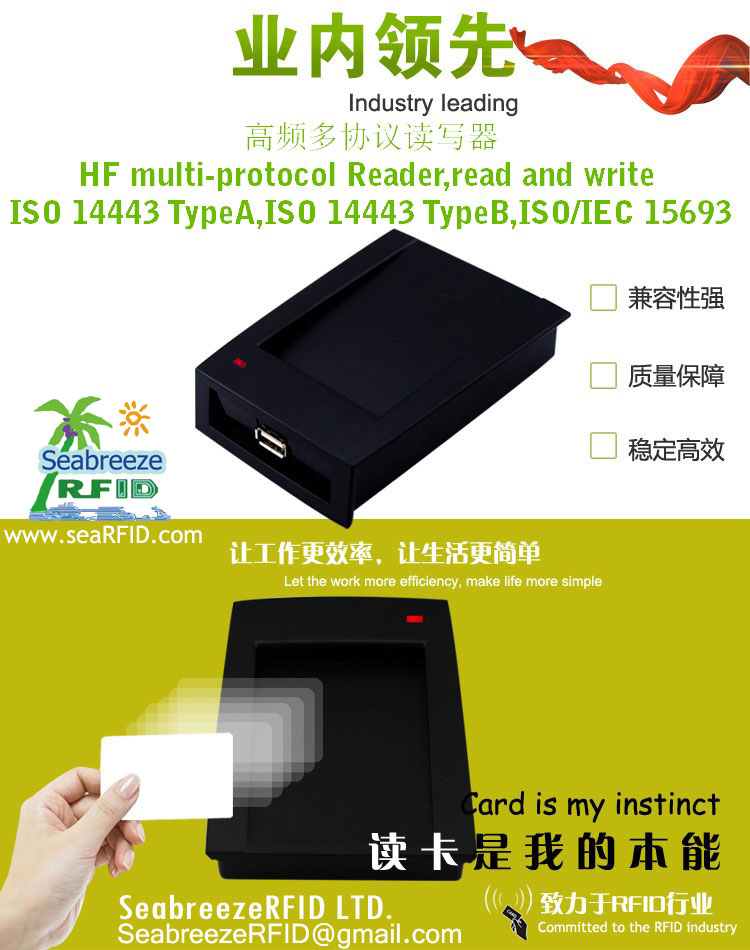

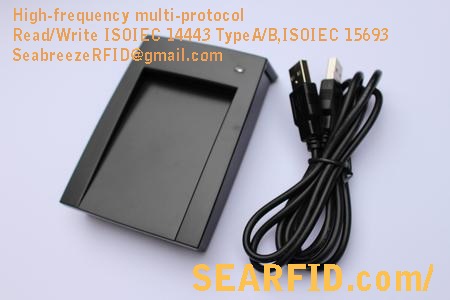

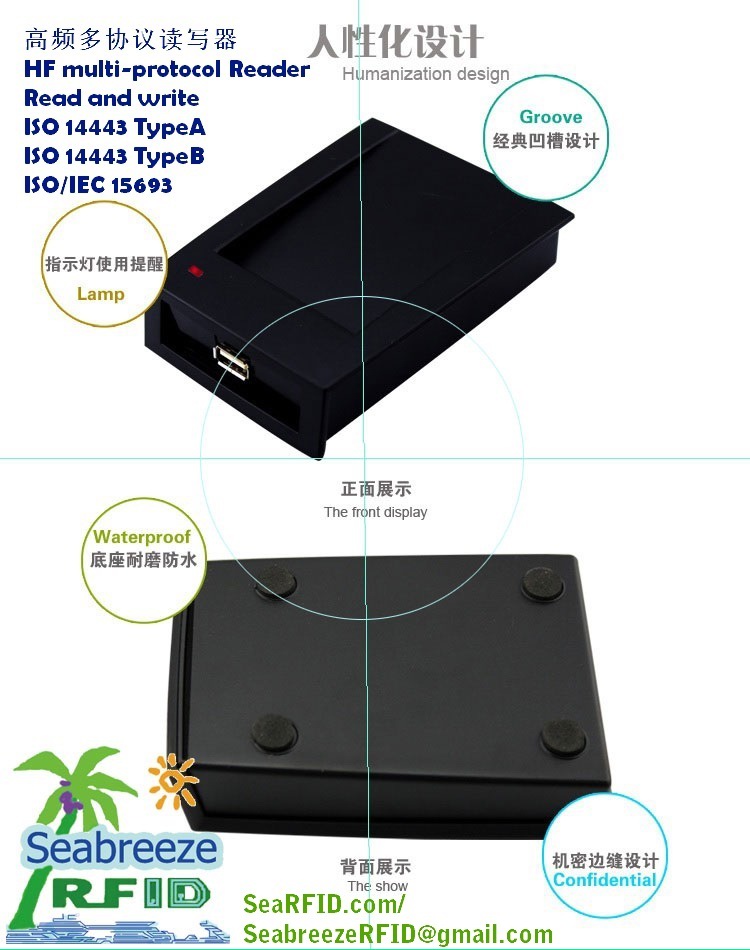

High-frequency multi-protocol Reader, reading and writing ISO 14443 TypeA, ISO 14443 TypeB, ISO/IEC 15693
The HF multi-protocol Reader, a simple and easy to use, stable performance, low cost, high performance and practical 13.56MHz non-contact card read and write, read/write S50 / S70 chips, Plus/S/X chips (ISO 14443 TypeA); SR176, SRIX4K chip (ISO 14443 TypeB); TI, I CODE 2 (ISO 15693), advanced plug and play, USB interface no drive core technologies (H·ID protocol), through the USB port to connect with the PC machine and related equipment, USB uses no drive technology, convenient operation and maintenance. The card reader built-in "watchdog" circuit, ensure reliable work, providing a variety of platforms driver development kit, accompanying Demo rf card fully functional, operational and automatic measurement card operation, offers a variety of rich, perfect interface function (dynamic link library DLL) as well as the development platform of driver development kit, Demo application.
Provide operation software and the Demo.
Can write sectors, block data, encryption key.
Technical parameters
| Item | Parameters |
| Protocol standard | ISO/IEC 14443-A, ISO/IEC 14443-B, ISO/IEC 15693 |
| Support chip | 1K S50, 4K S70, FM11RF08, Plus, Plus S/X, SR176, SRIX4K, I.CODE SLi, etc. |
| Operating frequency | 13.56MHz |
| Work mode | R/W (ISO 14443 TypeB read-only) |
| Communication speed | 106Kbit/s |
| Serial port baud rate | 9600-115200Kbit/s (optional), default 9600 |
| Power supply | DC 5V(±5%), USB interface power |
| Current consumption | <100mA |
| Reading distance | 0~10cm |
| Interface | USB/RS232 (optional) |
| Buzzer | programmable control buzzer |
| Status indicates | red LED programmable control indicator |
| Operating temperature | -10℃~+70℃ |
| Storage temperature | -20℃~+80℃ |
| Relative humidity | 0~95% |
| Product size | 104×68×10mm |
| Color | Black |
LED light indicate
Red: Power
Green: reading card
Red and green flashing: equipment is communications
Blue: other function reserve
|
|
