UZK-102 UHF Long Distances Integrated Reader,logistics,parking lot,animal identification and anti-counterfeit

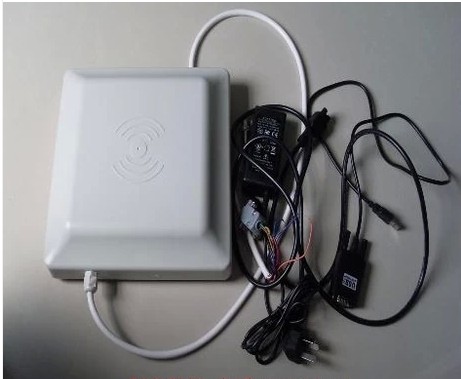

UZK-102 is a high performance UHF integrated reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate.Typical read range of 1-15 meter.It can be widely applied in many RFID application systems such as logistics, access control,parking lot,animal identification and anti-counterfeit and industrial production process control system.

Model: UZK-102

Size: 445mm×445mm×55mm

Weight: 2600g

Features:

Self-intellectual property

Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag

902-928MHz frequency band(frequency customization optional)

FHSS or Fix Frequency transmission;

RF output power up to 30dbm(adjustable)

12dbi antenna optional with effect distance more than 10m(Effective distance depends on antenna, tag and environment)

Support auto-running, interactive and trigger-activating work mode

Low power dissipation with single +9 DC power supply

Support RS232, RS485, Wiegand interface

Provide DLL and Demonstration Software Source code to facilitate further development

CHARACTERISTICS

 Absolute Maximum Rating
ITEM	SYMBOL	VALUE	UNIT
Power Supply	VCC	16	V
Operating Temp.	T_OPR	-10-+60	℃
Storage Temp.	T_STR	-25-+80	℃

 Electrical and Mechanical Specification
Under TA＝25℃,VCC＝+9V unless specified
ITEM	SYMBOL	MIN	TYP	MAX	UNIT
Power Supply	VCC	8	9	12	V
Current Dissipation	I_C		350	650	mA
Frequency	F_REQ	902		928	MHz
Effective Distance	DIS	800		1000	cm

INTERFACE

ITEM	COMMENT
Red	+9V
Black	GND
Yellow	Wiegand DATA0
Blue	Wiegand DATA1
Purple	RS485 R+
Orange	RS485 R-
Brown	GND
White	RS232 RXD
Green	RS232 TXD
Grey	Trigger input(TTL level)

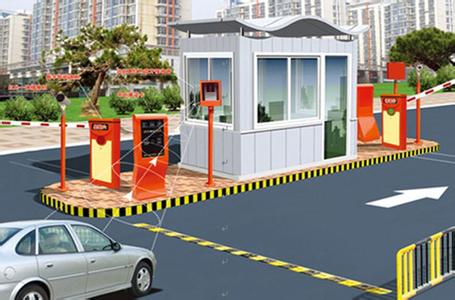

Used in parking lot management system
