SM013 ISO14443A card reader module, IC card read/write module

Name: SM013 ISO14443A card reader module IC card readwrite module
Brand: SeabreezeRFID
Price: 1 USD

Place of Origin : China Mainland

Brand Name : SeabreezeRFID

Certification : RoHS

Model Number : SM013

Add time : 2014-01-17 10:33:41

MOQ : 1 piece

Packaging Details : 1piece/carton

Delivery Time : In stock

Payment Terms : L/C, T/T, Western Union, PayPal

Supply Ability : 2000pcs/month or Specify the number

Contact Now

SM013 ISO14443A card reader module, IC card read/write module

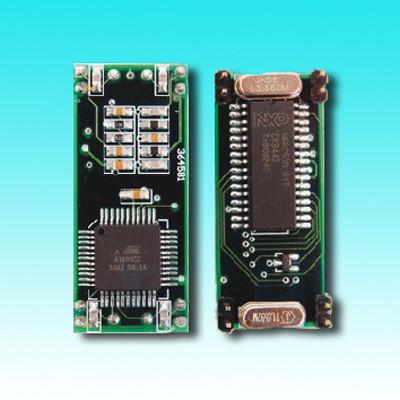

SM013 is a very small volume,compact, Use IC integrated circuit development of high frequency RFID read / write module.support 1K, 4K. About the size of a 32 pin DIP package chip. Four layer circuit board design, stable and reliable work, Universal Asynchronous Receiver and Transmitter protocol, antenna and module split-type. SM013 modules supporting a 40mm diameter single antenna.

Technical parameters

Frequency: 13.56MHz

Protocol: ISO 14443A

Support chips: 1k(S50), 4k(S70), 1k compatible chips such as FM11RF08,TK S50,ISSI S50,etc

Interface: UART interface, baud rate 19200

Power supply: DC4.5V ~ 5.5V

Operating range: 60mm (depending on the card or tag will change)

Storage conditions: -40℃-+85℃ (-40℉-+185℉)

Operating temperature: -20℃-+70℃ (-4℉-+158℉)

Size: 41×18mm

Quality SM013 ISO14443A card reader module, IC card read/write module wholesale

SM013 ISO14443A card reader module, IC card read/write module Images
